Product Brand
SIHI® Type
Side Channel SubType
Industrial Process and Chemical Pumps About this product

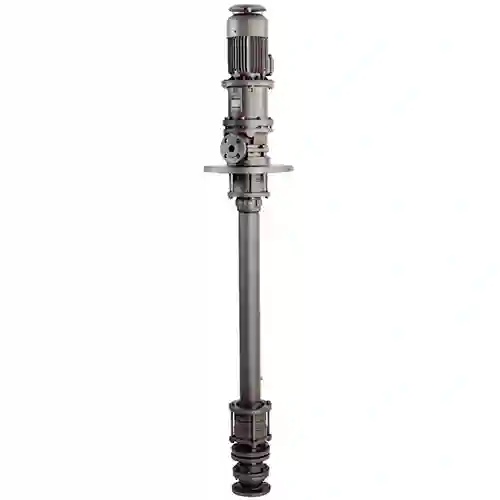

The CEB side channel units are a low noise design of combination pumps. They are ideal for pumping liquids that are stored at their boiling point, have a degree of entrained gas, or very low NPSH conditions. The vertical tank pump has been designed in order to enable retro-fitting into most common tanks. Moreover, the dimensions are such that the unit can be used to replace submersible designs of pumps. Although the pump can be supplied in other lengths, the standard size is between 1.3 and 3.0 m.
... Read more Read less- Vertical, extended tank pump essentially for handling liquids that are either boiling or stored at their vapor pressure
- Particularly suited to LPG car filling stations
- One of the primary features of this side-channel type of pump is the special suction impeller that requires extremely low levels of NPSH
- CEB pumps have been specifically designed for use with liquefied petroleum gas (LPG) and other liquefied gases
- Volume flow: up to 65 l/min
- Differential pressure: up to 15 bar
- Speed: max. 2,900 rpm
- Temperature: max. 60 °C
- Casing pressure: up to 40 bar
- Shaft seals: magnetic drive
- Materials: nodular iron
Size Range: 1 Size / up to 4 stages
