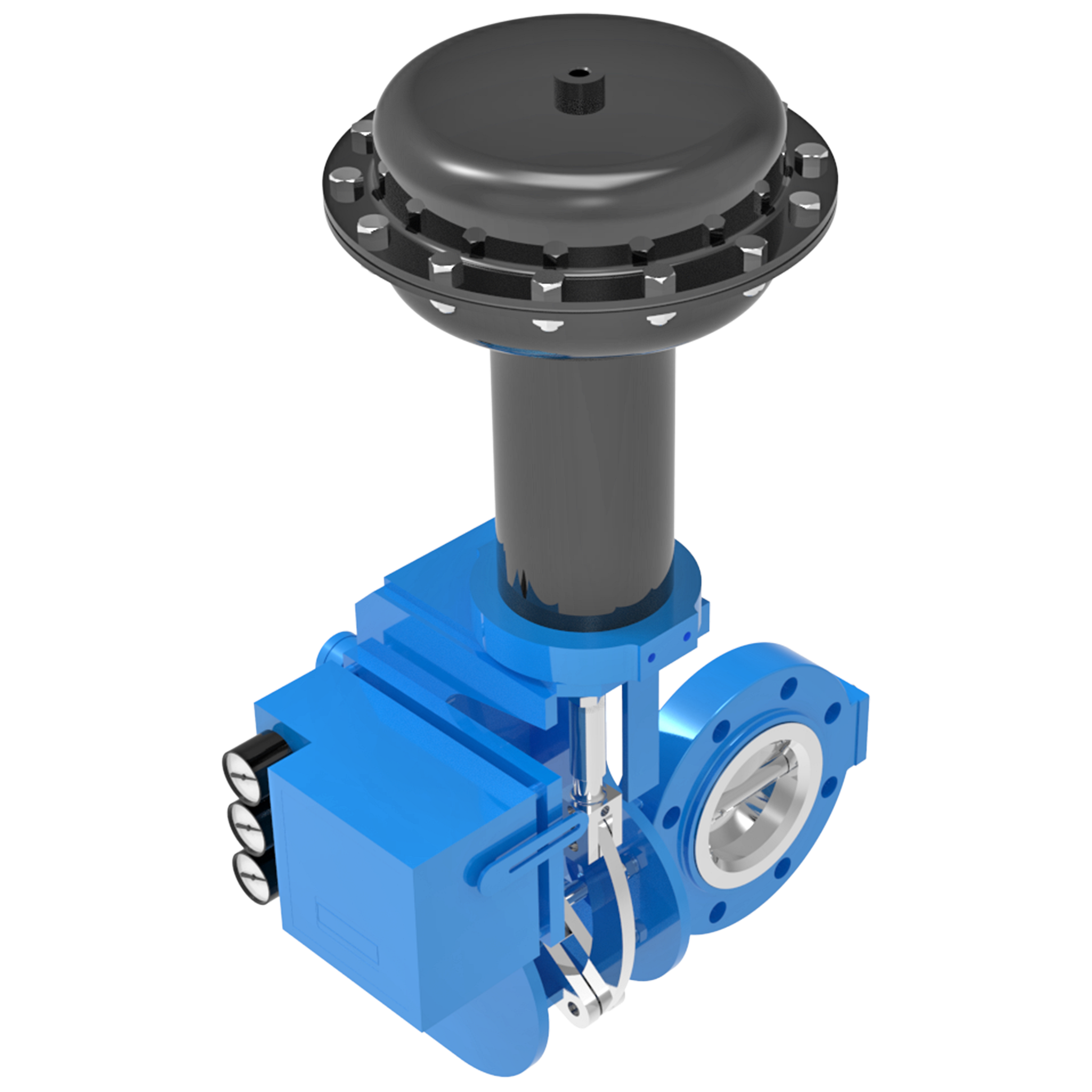

Batley Valve® BV 16000 SpoolSeal
The Batley Valve® BV 16000 SpoolSeal butterfly control valve incorporates the use of a replaceable rubber liner for body protection. Batley Valve BV 16000 SpoolSeal butterfly control valves incorporate a replaceable rubber liner for body protection. They are normally supplied complete with our own manual, diaphragm, cylinder or electric actuator. The rubber lining is of snap-in type, which locks into a body recess and is available in various grades of rubber. The streamlined shape of the vane provides minimum resistance to flow and the swing-through action prevents damage to the liner should the valve overtravel. The solid ring type body is accurately machined for liner retention, vane and spindle alignment to ensure positive shutoff combined with lower seating torques.
... Read more Read less- Packing features a secondary seal is a Viton O-ring, acting as a back-up to the primary seal, which is incorporated in the liner.
- Prevents ingress of dirt from the atmosphere
- Bubble tight shutoff up to 10 bar, depending upon valve size
- ANSI B16.34
