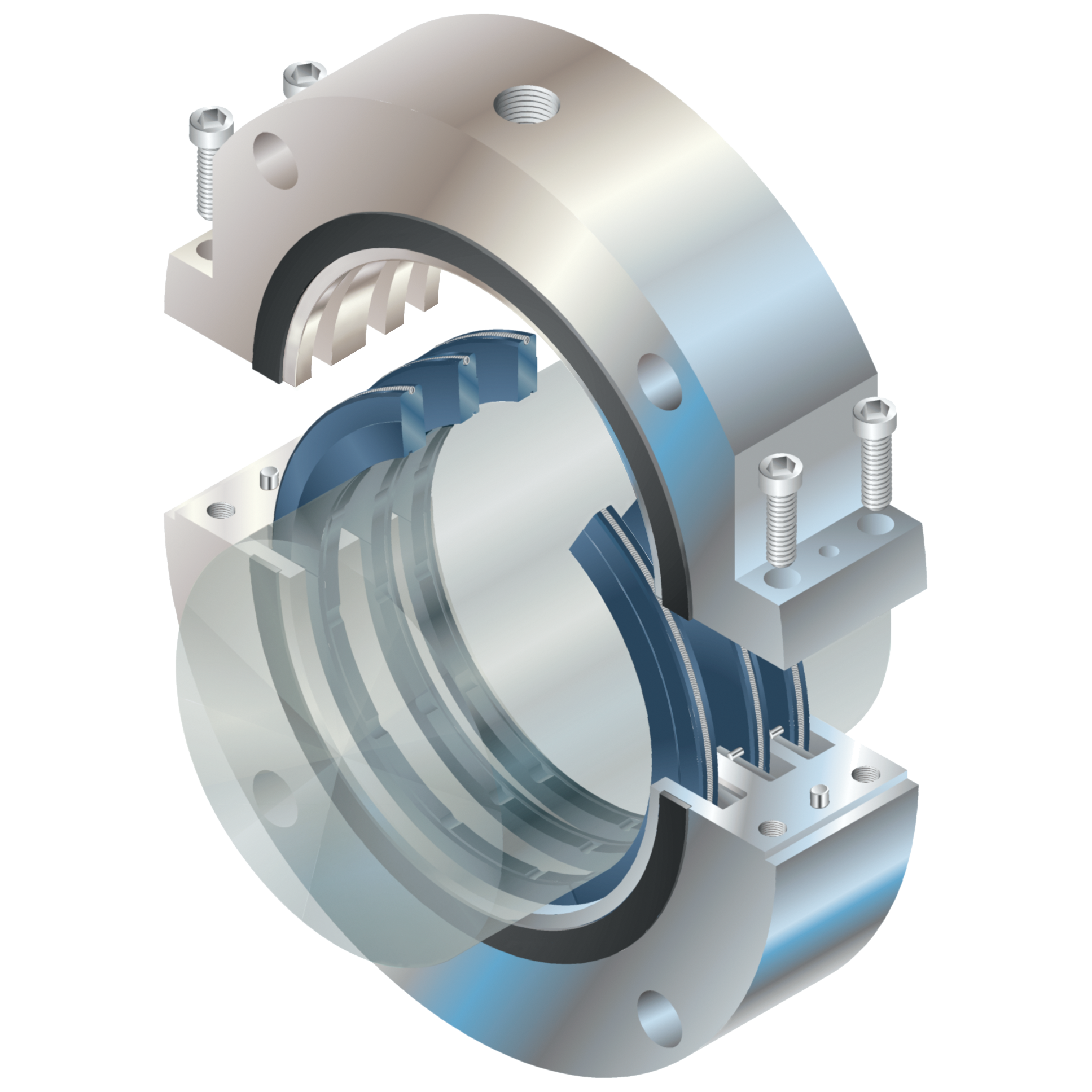

Flowserve Circpac™ MD Specialty Seal with Circumferential Bushing
Circpac MD seals are a segmented circumferential seal designed for fans, blowers, dryers, turbines, centrifuges and other rotating equipment. Circpac MD seals come packaged in a convenient split housing for easy installation. Standard designs consistently outperform packing, bushings, labyrinths, and felt seals with lower gas consumption over a wider range of operating conditions.
... Read more Read less- Floating circumferential rings are hydraulically balanced with hydrodynamic surface topography to minimize wear at high speeds and pressures
- Standard radially split seal housing enables installation without dismantling equipment or requiring equipment modifications
- Multiple ring configurations are available for higher pressures, process venting or draining, inert gas purging, reduced emissions, and emergency backup
- Companion inert gas support panels are available to provide adequate flow and pressure of nitrogen or other barrier gases to achieve near zero emissions
Pressure: vacuum to 6.9 bar (100 psi)
Temperature: -40 to 593°C (-40 to 1100°F)
Speed: up to: 46 m/s (150 fps)
Sizes: 35 to 457 mm (1.375 to 18.000 inches)
Single ring
Low pressures
Tandem rings
Process vent or drain
Double rings
Inert barrier gas injection
Triple rings
Inert barrier gas injection
Lower barrier gas consumption rate
Quadruple rings
High pressure
Multiple vent, drain, or barrier gas injection ports
