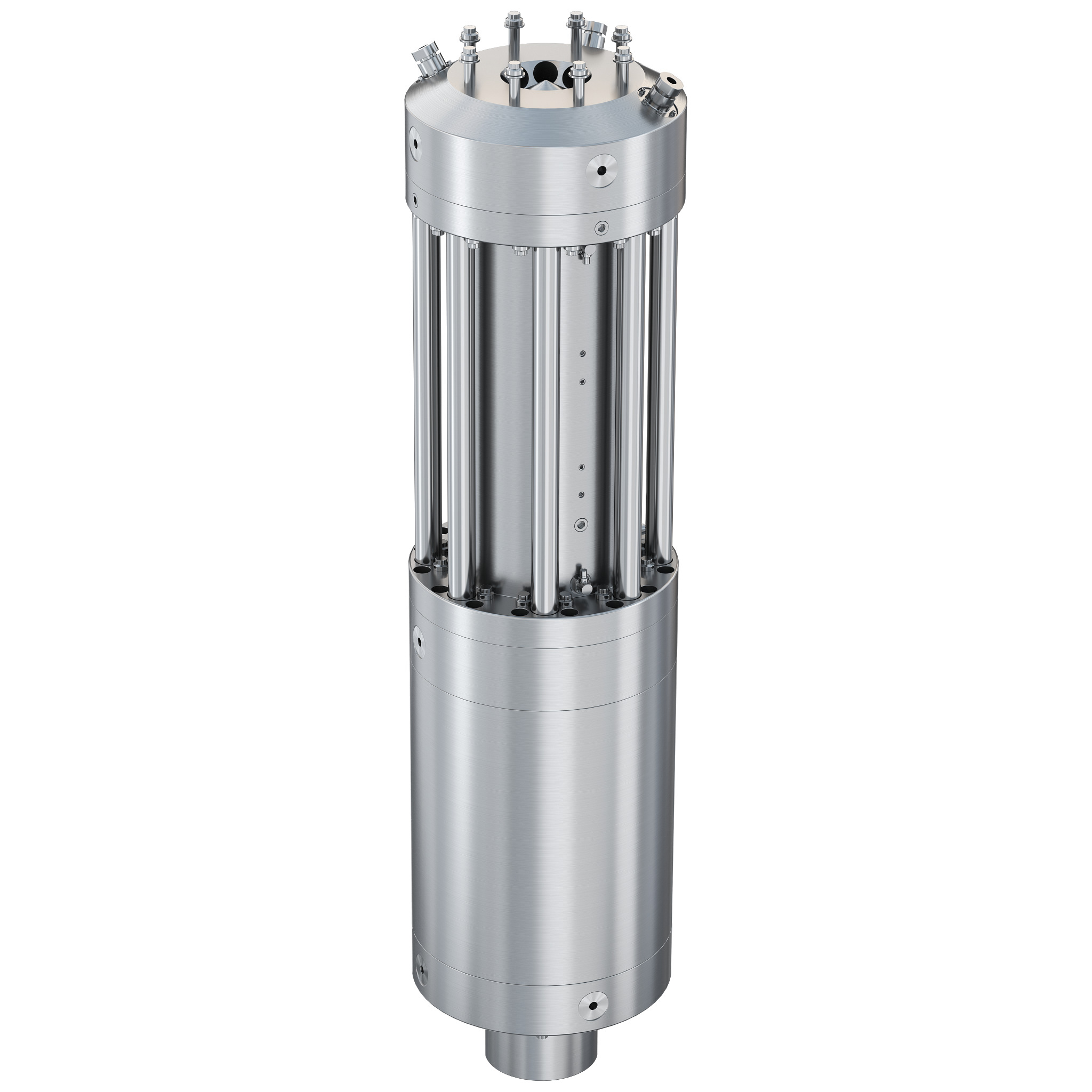

Flowserve Cryogenic Submerged Motor Pump - High Pressure (HP) Series
The Flowserve HP Pump Series represents a significant advancement in cryogenic pumping technology, integrating over 300 years of combined LNG industry expertise. Designed for LNG regasification terminals worldwide, the HP Series combines high efficiency, inherent safety, and exceptional reliability to significantly reduce total cost of ownership.
... Read more Read less- Industry-leading efficiency reduces power consumption, lowers OPEX, and decreases CO2 emissions throughout the pump’s service life
- Active Thrust Balancing System virtually eliminating axial bearing loads extending bearing life significantly
- Ceramic ball bearings with hardened steel races provide exceptional wear resistance and debris tolerance for improved reliability and bearing life
- Variable Pitch Inducer with suction-specific speeds up to 100,000+ dramatically reduce NPSHR
- Configure-to-order approach with fixed speed and full VFD compatibility, reducing lead times and simplifying spare parts management
Standards
API 610
NFPA 59A
Operating Parameters
Flows to 600 m3/h (2,640 gpm)
Heads to 2,400 m (7,870 ft)
Maximum pressure to 124 bar (1,800 psi)
Typical LNG Temperature: -162°C (-260°F)
Designed for LNG
Materials
Aluminum 6061-T6 (Main Components)
High Strength Stainless Steel (Shafts)
304 or 316 Stainless Steel (Suction Vessel)
Pressure Class Range: Up to ASME Class 900
Size Range: All available and future lengths requires by the market
