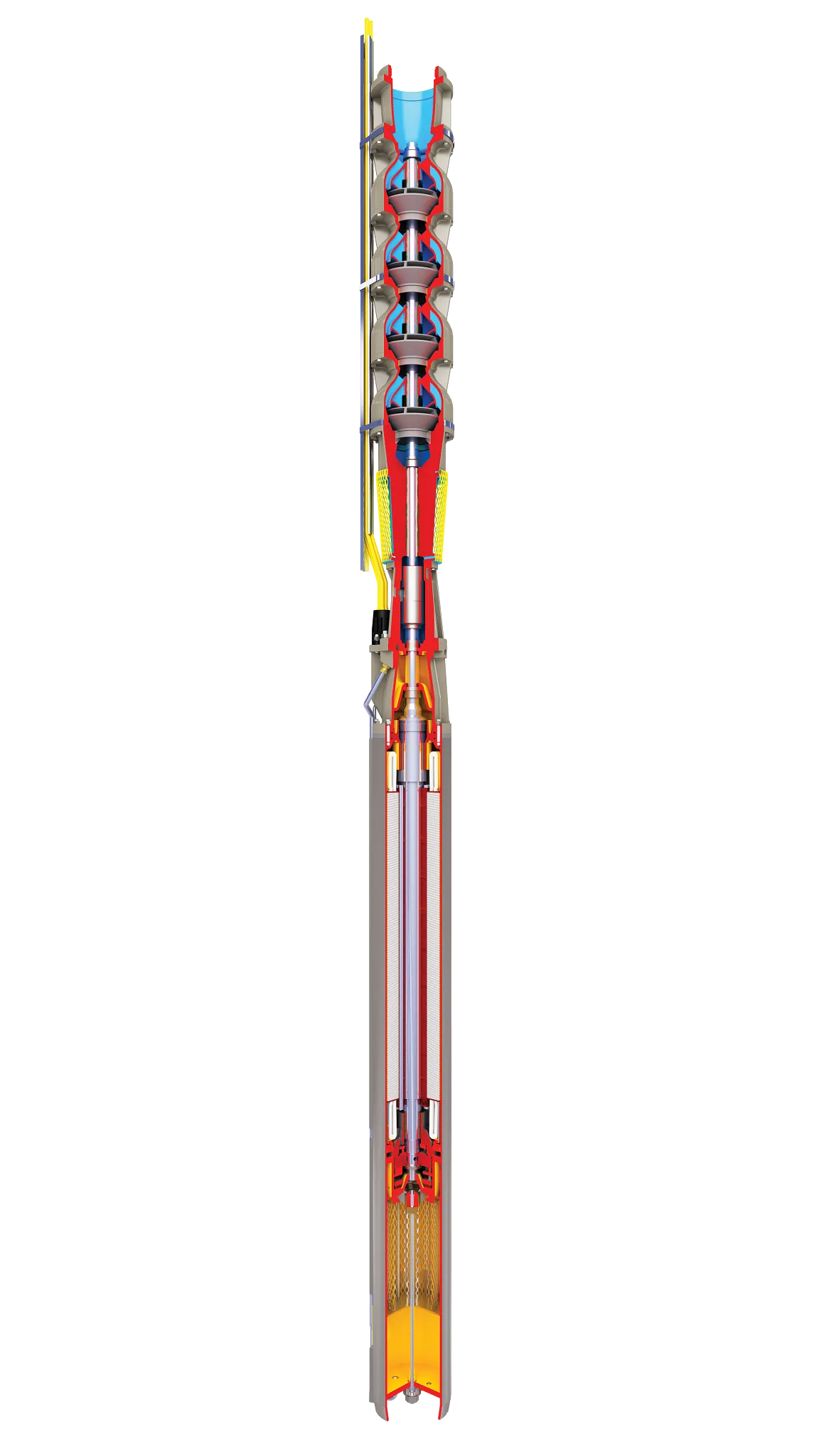

Byron Jackson® SUBM Submersible Pump with Oil-Filled Motor
Submersible pump units are available with various options:
- Radial, half-axial and axial flow hydraulics
- Heavy duty axial motor bearings
- Materials from cast iron to SuperDuplex
- Bowl and impeller wear ring configurations
- Winding insulation materials and winding layouts
- Cable qualities and cable configurations
- Motor filling fluid temperature control
- Accessories (shrouds, control equipment, installation accessories, frequency converters, cables, non return valves, adapters, etc.)
Flowserve
- Flows to 4500 m³/h (19800 gpm)
- Heads to 800 m (2625 ft)
- Motor sizes to 1650 kW (2200 hp)
Size Range:
- Pump sizes from 150 mm (6 in) to 1375 mm (55 in), motor sizes from 200 mm (8 in) to 533 mm (21 in)
- Motor power up to 1650 kW (2200 HP) 2 - 8-pole design, 50 & 60 Hz
- Voltage up to 6600 V
Deep Well Design
Standard design for deep well or offshore applications
High Temperature Motor Design
Special motor designs for high temperature operation
Cavern Design
Special design for installation in caverns handling hydrocarbons (explosion proof design)
