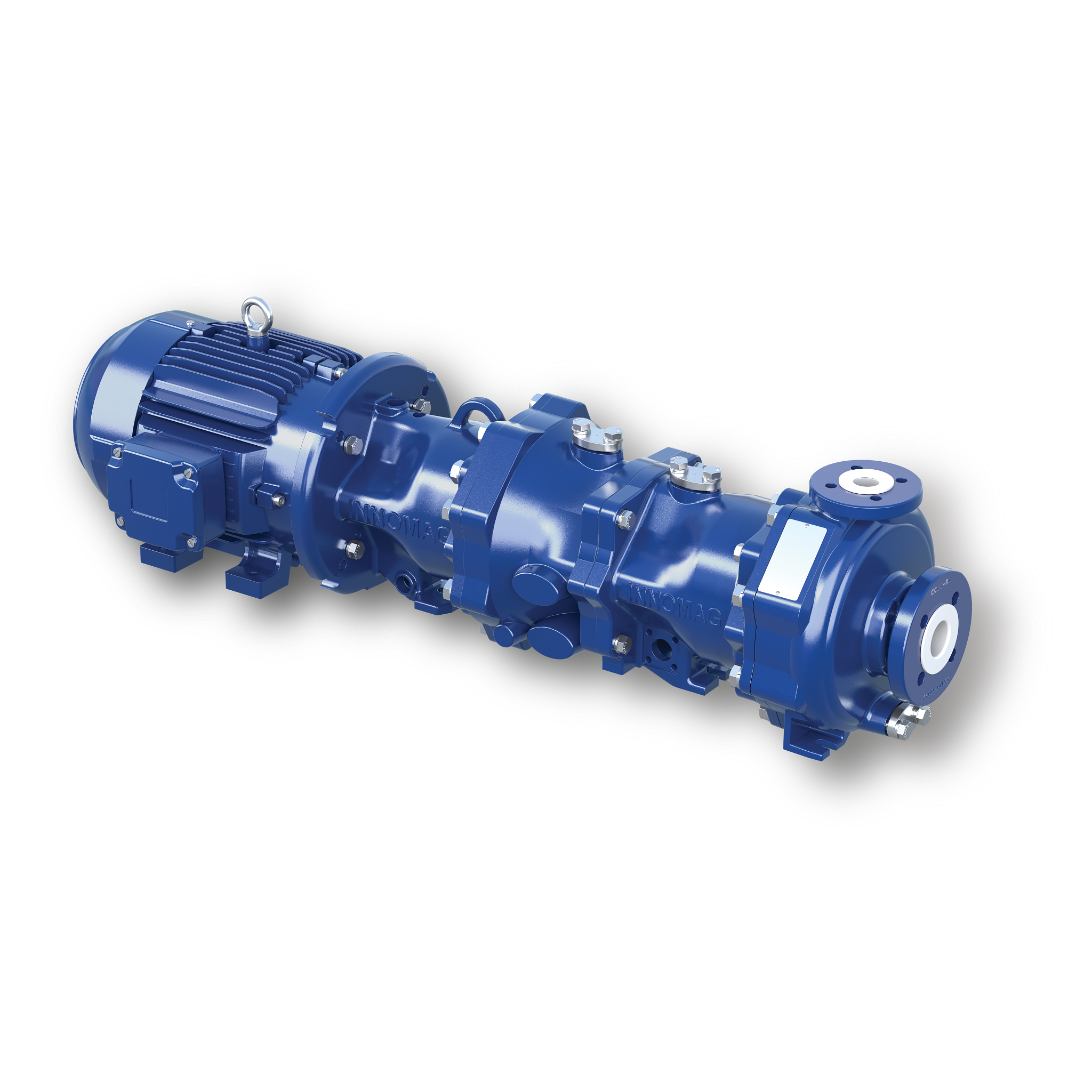

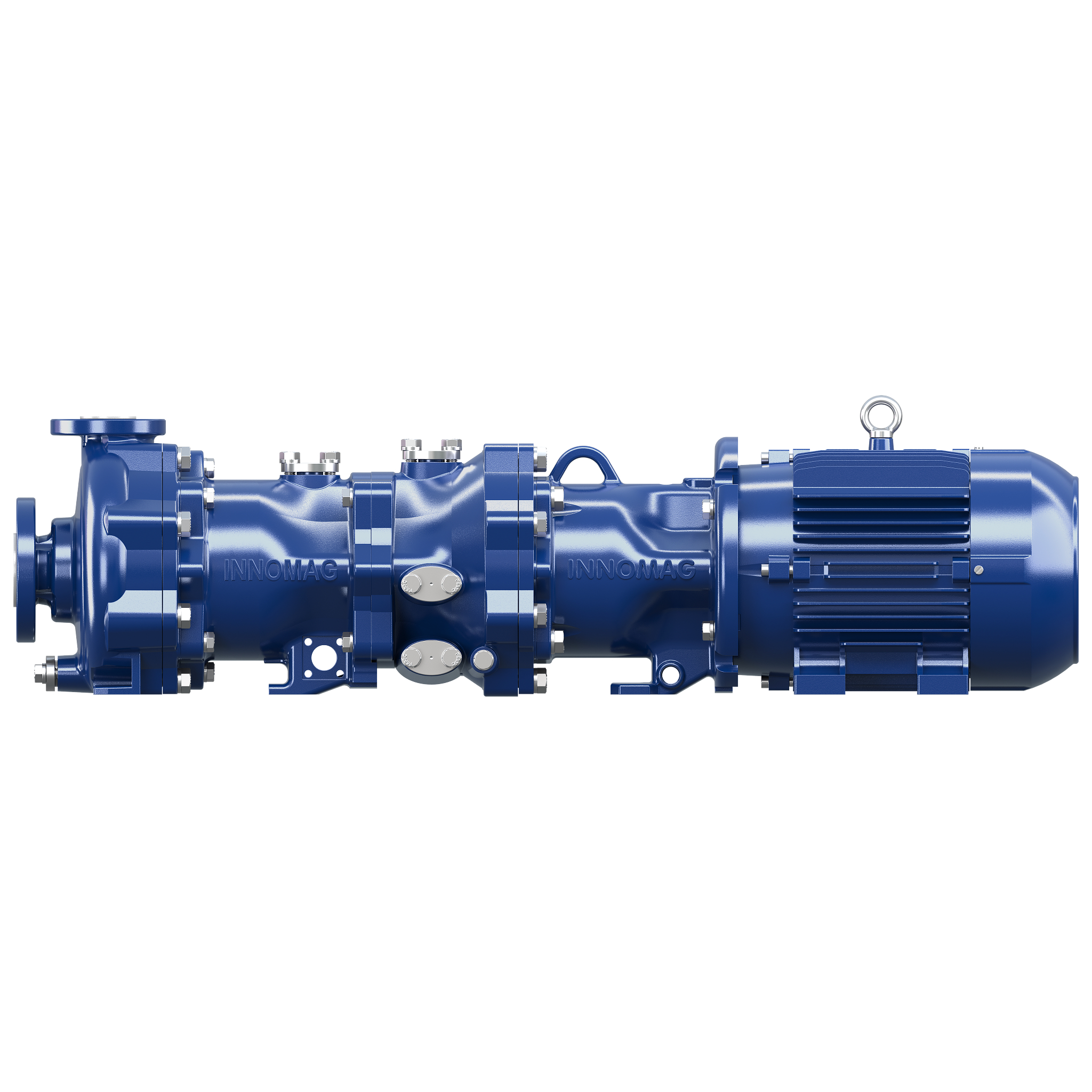

INNOMAG® TB-MAG™ Dual Drive™ ASME (ANSI) / ISO Sealless Chemical Process Pump
INNOMAG Dual Drive is the world’s first and only magnetic-drive pump with true secondary containment. Its innovative design provides a secondary hermetically sealed containment barrier independent of the motor housing, setting a new benchmark for safety in hazardous chemical services. Built on the proven Innomag platform, it combines exceptional safety, reliability and chemical resistance.
The 2025 Vaaler Award winner in the Fluid Flow category. Click here to learn more.
... Read more Read less Safest
True dual containment
Low Maintenance
Only one bearing set
Modular Design
Add to existing TB-MAG
- Allows for standard, readily available, off-the-shelf customer choice motors
- Does not have motor in contact with the liquid containment. In fact, primary and secondary containment barriers have the same material of construction to ensure chemical compatibility.
- Minimal maintenance - just one set of bearings
- Is more efficient due to zero eddy current loss
- Electrician not required to service the pump even after primary containment failure
- Can handle solids up to 30% in volume
- Simple and user-friendly, does not require specialized tools for servicing
Standards
ANSI B73.3
ISO 2858
Temperature
-20°F to 250°F (-29°C to 121°C)
Materials
ETFE Lined
316 Stainless Steel
