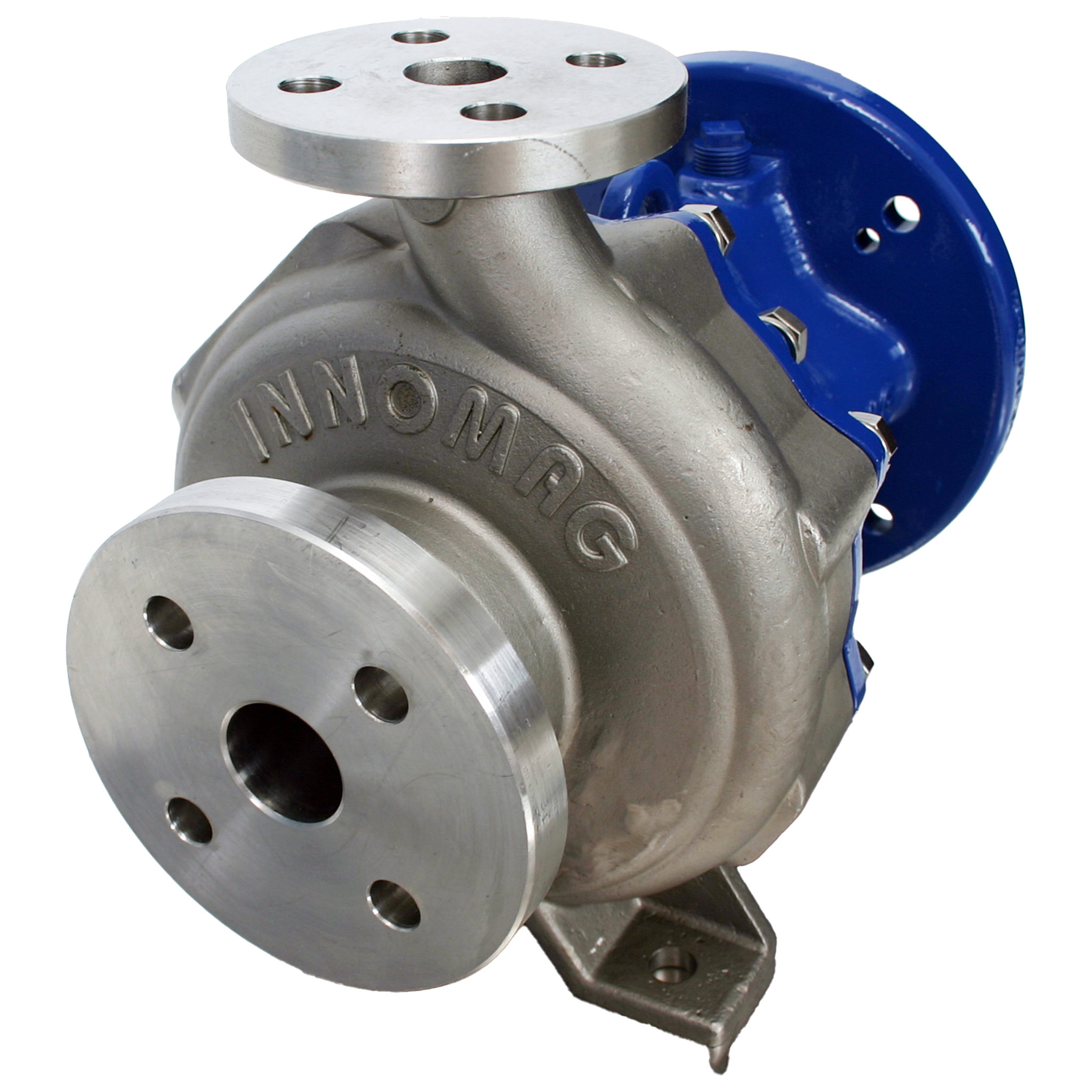

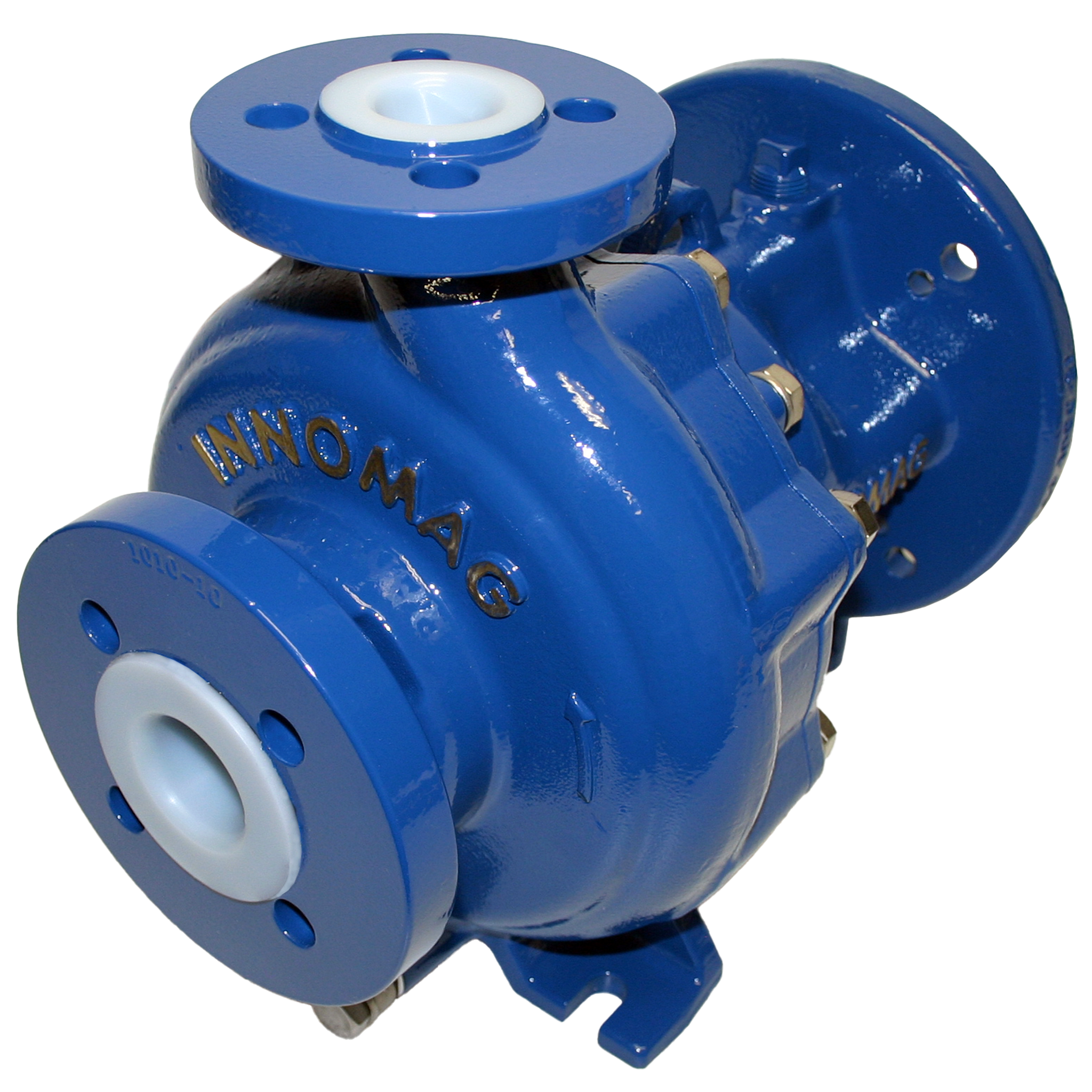

INNOMAG® TB-MAG™ ASME (ANSI) / ISO Sealless Chemical Process Pump
INNOMAG is a versatile, low maintenance, sealless chemical process pump engineered for low total cost of ownership and exceptional leakage protection. Compliant with ASME B73.3 or ISO 2858/15783, its revolutionary thrust-balanced design improves efficiency, enhances reliability, expands allowable operating range, and delivers exceptional solids-handling capability.
... Read more Read less- Dynamic thrust balancing eliminates thrust bearings, improving efficiency, reliability and service life while reducing operating costs
- Pure ETFE Casing Liner with double-sealed inner magnets and a composite containment shell deliver outstanding corrosion resistance, leakage protection and zero eddy current losses for maximum efficiency
- One-piece ETFE impeller and inner magnet assembly maximizes torque transmission, simplifies maintenance and eliminates balancing
- An enclosed impeller with an unobstructed eye and an oversized stationary cantilevered shaft provide high efficiency, low NPSHR and strong radial-load capability
- Superior solids handling supports reliable operation with up to 30% solids content at 0.13 mm
- ASME B73.3
- ISO 2858
- ISO 5199
- ISO 15 783
- ATEX
- CE
- Flows to 360 m³/h (1585 gpm)
- Heads to 153 m (500ft)
- Maximum pressure to 25 bar (365 psi)
- Temperatures -29°C (-20°F) to 121°C (250°F)
- Solid handling: 30% by volume
Size Range: DN25 to 125, 1in to 5 in
Pressure Class Range: PN25
