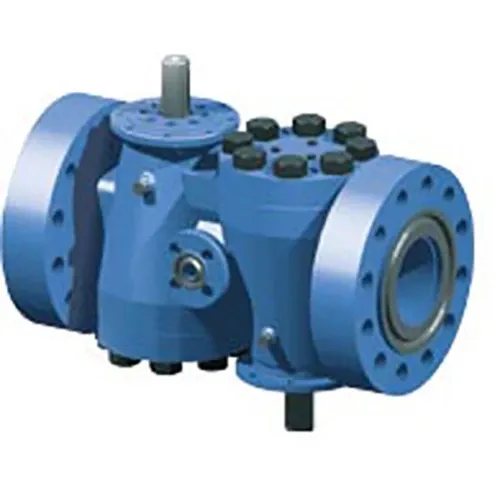

- Broad application versatility due to robust design, making valve well-suited for isolation in compressor, pump, meter, water or gas injection system applications
- Improved plant and personnel safety assured by double-isolation design
- Installation ease from compact design with the same face-to-face dimension as a single valve
- Greater process control via proven Dynamic Balance® pressure-balanced and sealing technology to prevent unequal pressure above/below the plug
- Low lifecycle costs compared to two single valves
API 6D
ASME B16.5
ASME B16.10
ASME B1.20.1
ASME B16.34
ASME B18.2.1
ASME B18.2.2
API 6A
API 599
MSS SP-6
MSS SP-25
MSS SP-55
MR0175 (NACE valves)
CSA Z245.15
Size Range:
- DN 50 to 300
- NPS 2 to 12
Pressure Class Range: 150 to 2500
Seating Material: Metal-to-metal
Valve Category:
- Cat A – Standard: -29°C to 232°C (-20°F to 450°F); Carbon Steel
- Cat B – Low Temp: -46°C to 232°C (-50°F to 450°F); Carbon Steel
- Cat C – NACE: -29°C to 232°C (-20°F to 450°F); Carbon Steel
- Cat D – NACE Low Temp: -46°C to 232°C (-50°F to 450°F); Carbon Steel
Plug Arrangement:
- Opposed plugs
- Twin plugs
Operator Types:
- Wrench operated
- Gear operated
- Less gearing
- Actuated
Valve Ends: Flange x flange
