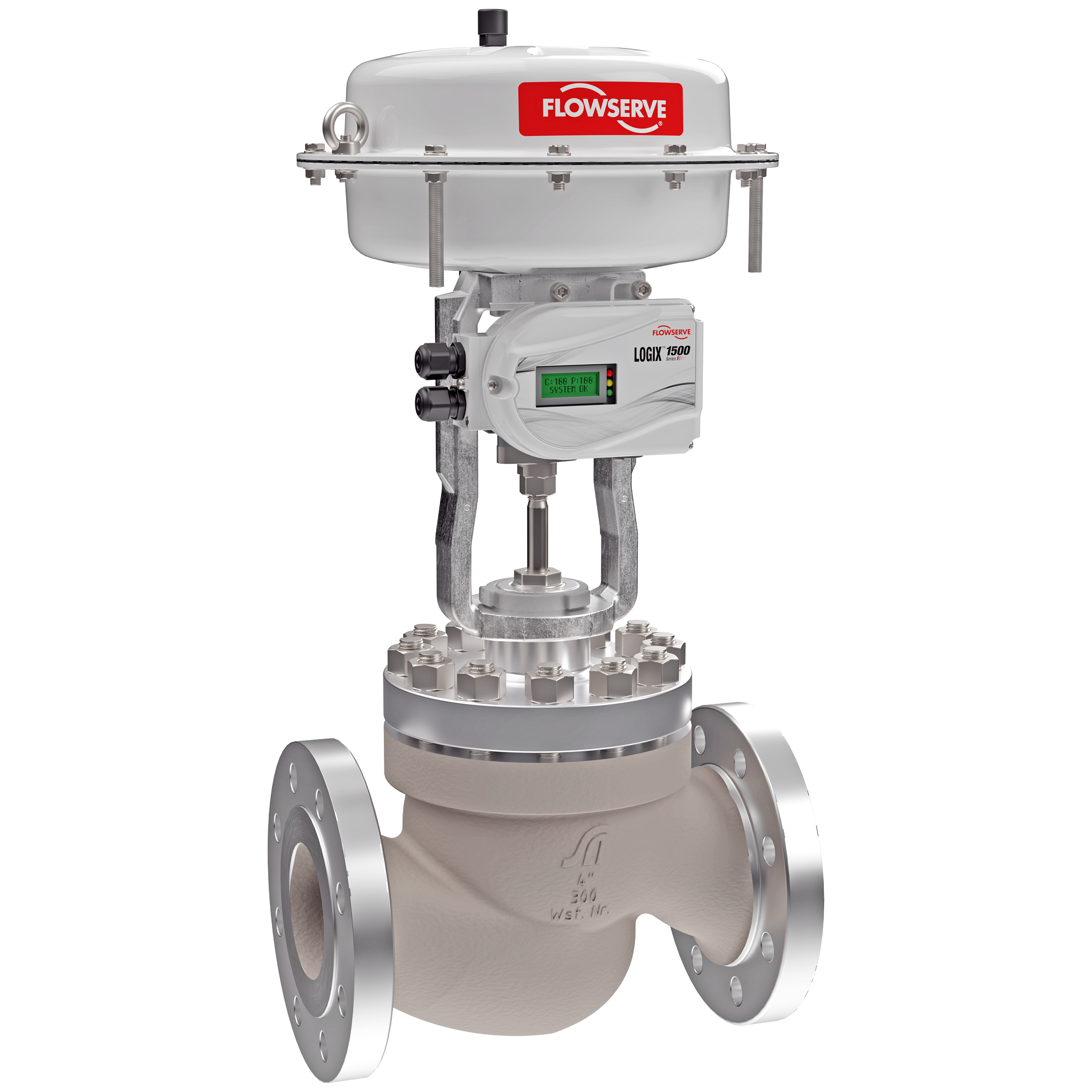

Valtek® FlowTop Linear Globe/Angle Control Valve
The Valtek FlowTop linear globe/angle control valve combines general-service process control with a high-thrust FlowAct pneumatic diaphragm actuator. Its modular platform accepts multiple bonnets, trims and actuators, helping plants standardize equipment, reduce spare-parts requirements and adapt the valve to varied services.
... Read more Read less- Precision-machined plug contours support accurate flow control
- Long stroke lengths improve controllability across the operating range
- Modular trim options enable upgrades for noise or cavitation control
- Sturdy plug construction helps limit vibration and trim wear
- Common body architecture reduces spare-parts complexity
- GS Certificates and Global Standards
- EN ISO 9001:2000
- PED 97/23/EC Module H
- DIN EN 161, DIN 3394
- TA-Luft VDI 2440 (Clean Air Act) / DIN EN ISO 15848-1
- ATEX 94/9/EC, Machinery directive 98/37/EC
- DIN, EN, AD-Merkblatt 2000, ANSI, ASTM, ISA
- EN 1349, EN 60534
- NAMUR
- SIL 3 / 4 acc. to IEC61508
- DNV Type approval (for classification of ships)
Size Range: 0.5 to 16
Pressure Class Range: 150 and 300
Seating Material:
- 316 s.s.
- 1.4122
- 1.4922
- Alloy 6 overlay
- PTFE soft seat
Globe Control Valve
General Service
Bellows Seal
Fugitive Emissions
