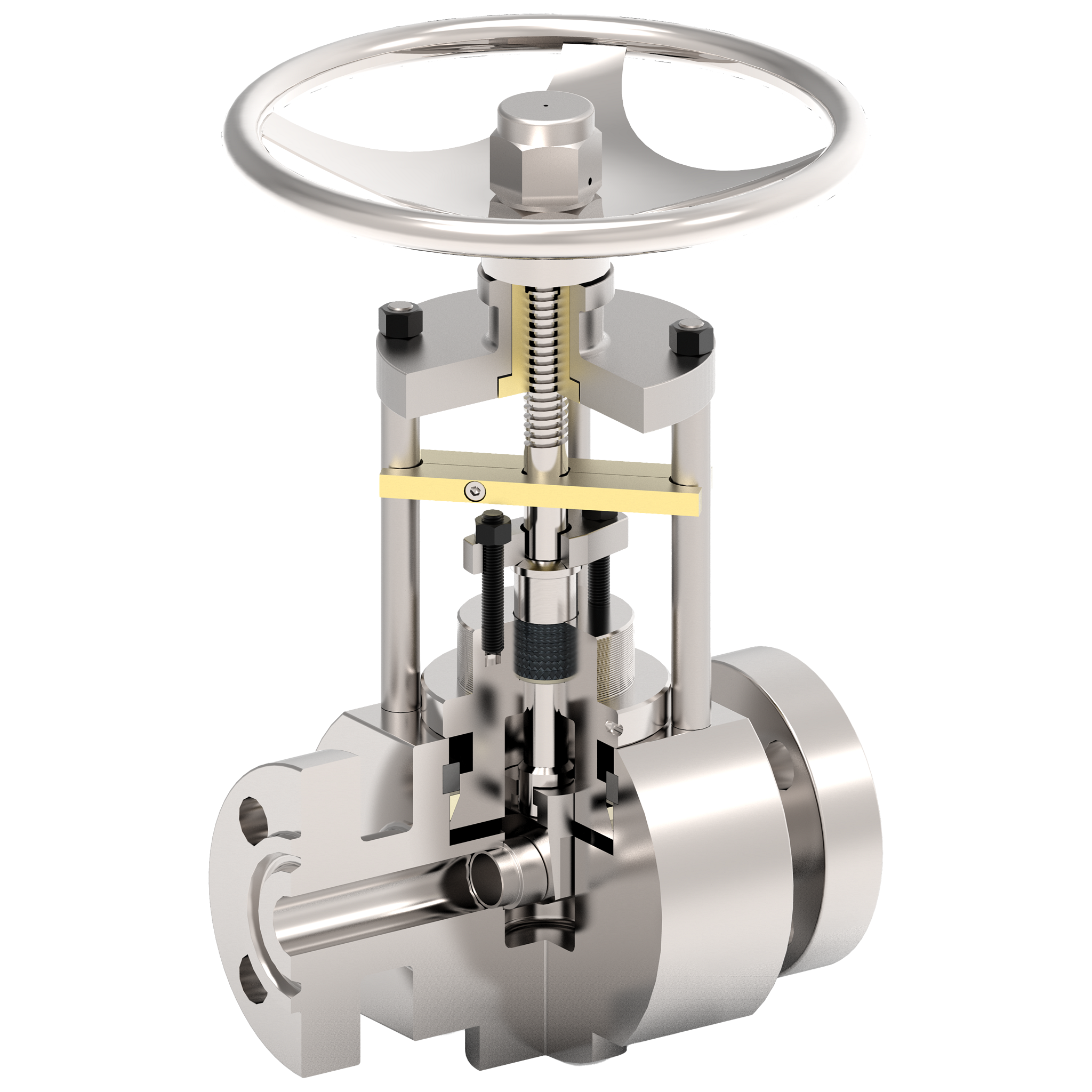

Red Point® Pressure-Seal Bonnet Gate Valve

Pressure-seal gate valves are used for high-pressure service, typically for pressures above 100 bar. The unique feature of the pressure seal bonnet is that the body-bonnet joints seal improves as the internal pressure within the valve increases. The main applications are: petrochemical industry, steam circuits, boiler circulation, oil and gas applications, and power stations. Common used types of medium encountered are: steam, condensate and boiler feedwater. Typical pressure ratings of the valve are 900, 1,500 and 2,500 pounds. Our pressure-seal gate valves are available as forged or cast valves featuring exotic material options with short delivery times.
