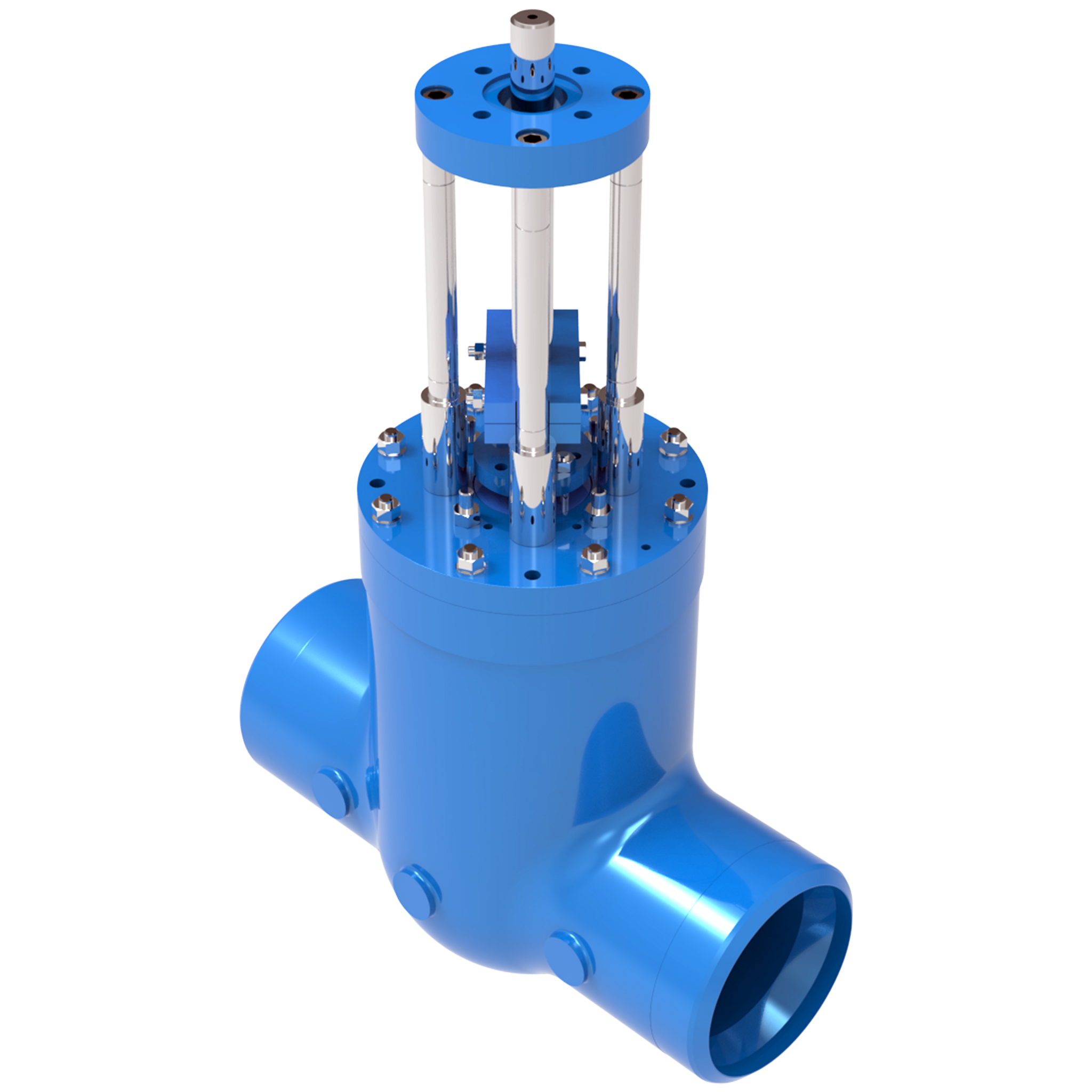

Hopkinsons® Full Bore and Venturi Parallel Slide Gate
The Hopkinsons Full Bore and Venturi valve are ideal for when a gate valve is required for steam or feedwater duty in medium- and high-pressure ranges. Full bore: The outstanding feature of the parallel slide design is that of maintaining fluid-tightness without the aid of wedging action. No mechanical stress is exerted between the discs, and there are no problems associated with cooldown of the fluid.
... Read more Read less- Fluid tightness achieved by fluid pressure, not from mechanical wedging action, thus eliminating thermal binding
- Complete flow isolation in either direction
- Minimum pressure drop
- Freedom from leakage independent of temperature or pressure changes
- Self-aligning, fully supported discs
- Inherent self-cleaning action
- In-line maintenance
- Valves can be offered to incorporate features such as quick closure, live-loaded gland, double- stuffing box with lantern ring and bleed-off point, back seat, seal welded body and cover joint
- ASME B16.34.
- Alternatively, valves can be supplied to other national standards, ASME section IIIRCC-M
