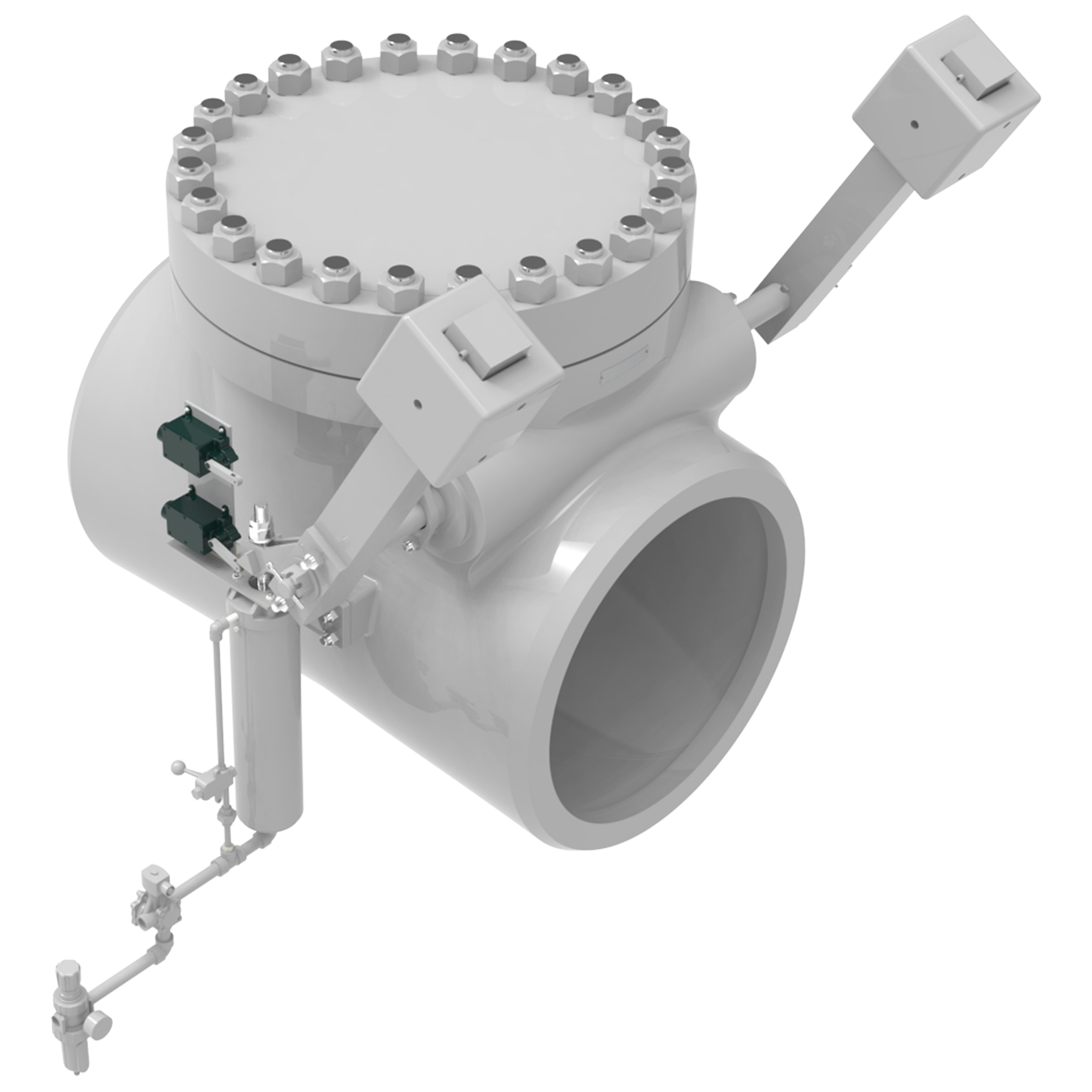

Atwood & Morrill® Cold Reheat Check Valve
Cold reheat check valves are designed to reliably protect a high-pressure steam turbine from damage caused by reverse flow and bypass steam. The design prevents reheat steam from returning to turbine on trip and protects the high-pressure turbine exhaust from bypass steam and water when the turbine bypass system operates.
... Read more Read less- Proven swinging disc design
- Inclined seat for short travel and quick operation
- Wide, flat, non-jamming seats for tight seal
- Streamlined flow passages for low-pressure drop
- In-line maintenance through bolted top cover
- Closing-assist, side-mounted air cylinder
- Capable of withstanding multiple rapid closures
- ASME B16.34
