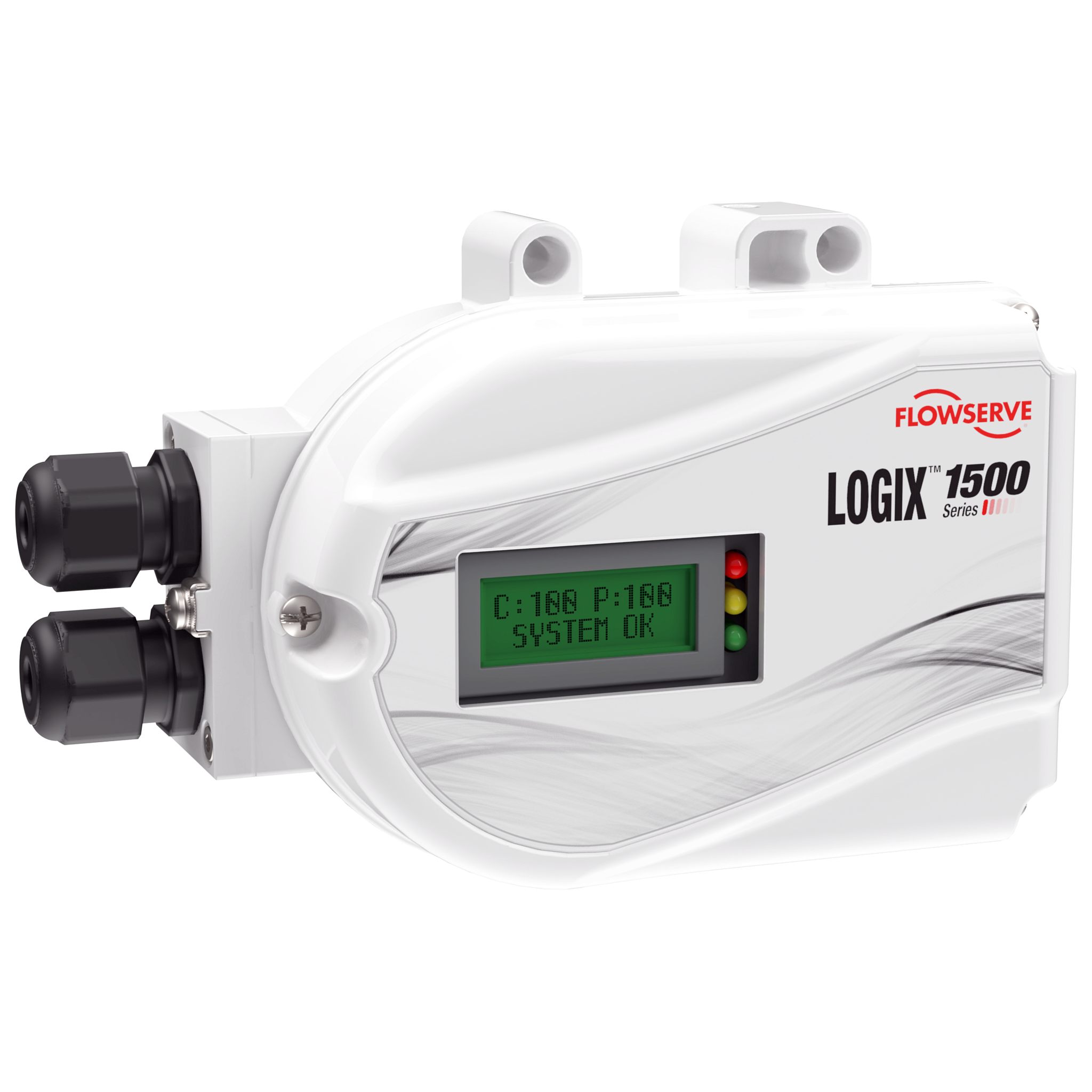

Logix 1500 Digital Positioner
The compact, light-weight, easy to use Logix 1500 digital positioner offers robust, reliable performance at an affordable price point. The modular design allows users to customize its components to fit a wide variety of applications. The Logix 1500 is equipped to handle single-acting linear and rotary applications. This set-it-and-forget-it positioner requires minimal maintenance after proper installation, reducing costs for operators.
... Read more Read lessModular Design
This positioner was designed with modularity and customization in mind. Easily change out modular parts on this positioner without affecting certifications or impeding functionality—all without calling a service representative.
Compact and Lightweight
The small size of this positioner means that it will function in tight spaces, allowing for flow control in previously inaccessible locations. The overall product design and engineering solution maximizes weight saving.
Simple Interface
The scroll-push button on the front of this positioner allows you to easily navigate the helpful LCD menu to configure your positioner and perform a quick calibration—even with safety gloves on.
Intrinsically Safe
Intrinsically safe and non-incendive certified design allow temperatures from −40°C to 85°C (−40°F to 185°F) with the aluminum cover to ensure safe, reliable operation in hazardous conditions.
Single-Acting Function
This positioner is equipped with a single-acting poppet-valve–style relay that boasts an output air capacity up to 60 psi.
Basic Diagnostic Capabilities
This positioner functions with ValveSight DTM or RedRaven IOT to provide helpful diagnostic information and allow you to predict maintenance needs.
Certifications: FM, CSA, ATEX, IECEx, CCOE, CCC
Air Capacity: 30.6 Nm³/h* @ 4.1 bar (12.2 SCFM* @ 60 PSI)
Air Consumption: 0.082 Nm³/h @ 4.1 bar (0.050 SCFM @ 60 PSI)
Repeatability: ≤ 0.05%
Temperature Range: -40°C to +85°C
Materials: Copper-free aluminum
Logix™ 1500 Digital Positioner Base Unit
Flowserve's Logix 1500 digital positioner provides an array of positioner functions a minimal cost. Take advantage of Flowserve's renowned flow control solutions while enjoying ease of operation with the Logix 1500. Choose between analog input and HART 7 communications to control the position of your valve, while the optional analog output allows you to monitor the actual position of the valve with precision.
Logix™ 1500 Configuration Packages
Configuration packages allow you to customize your Logix 1500 digital positioner to suit your facility's needs. Easily switch between linear and rotary applications with a simple shaft change. Select ½" NPT or M20 conduits to match with the rest of your fixtures. Opt in or out of using gauges depending on your monitoring needs.
