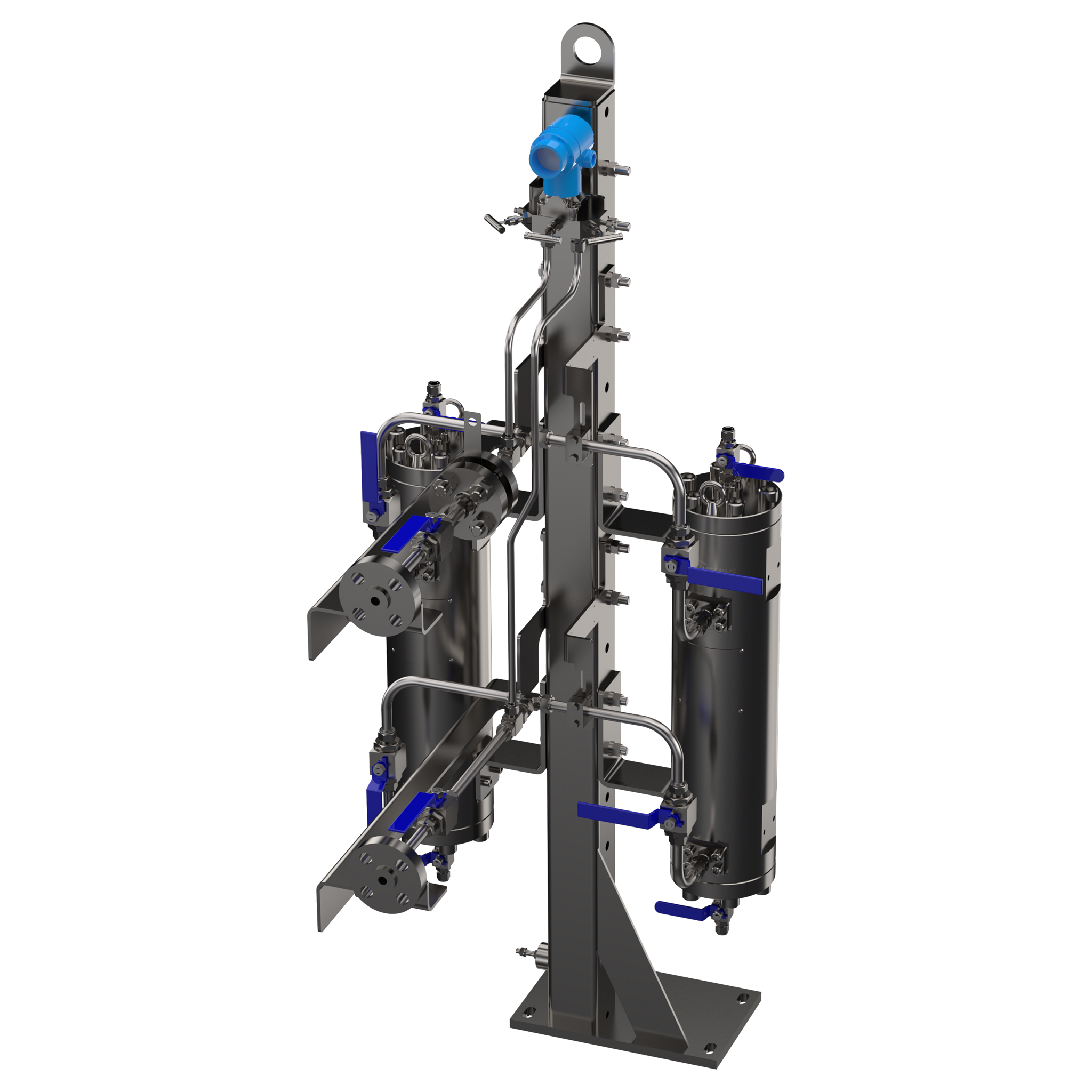

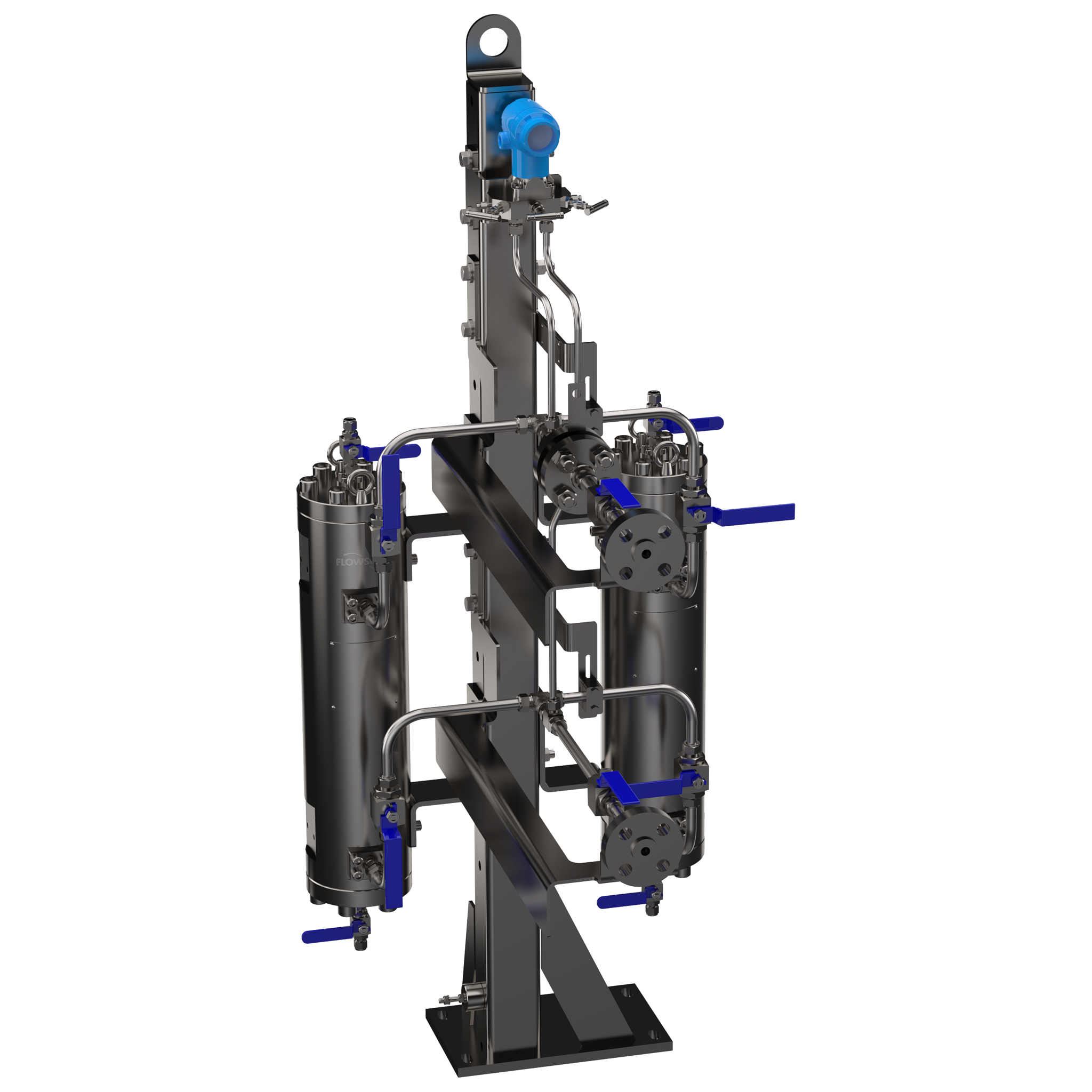

Flowserve Pipeline Filter Series Seal Support System
Maximize pipeline pump uptime and mechanical seal performance with our low maintenance seal flush filter system. In the pipeline industry, the reliability and life of mechanical seals are critical to maximizing equipment availability and minimizing maintenance. To ensure optimal seal performance, it is essential that the flush fluid is both clean and cool. The Pipeline Filter Series delivers a constant supply of clean, cool flush fluid. Our standardized design offers quick delivery and competitive pricing, making it an ideal solution for new installations, retrofits, or seal upgrades.
... Read more Read less Simple to Order
Quick to quote and ship
Easy Filter Change
Reduce downtime
High MAWP
Up to 207 bar (3,000 psi)
- Simple to order: Pre-engineered for quick quoting
- Fast shipment: Stocked parts for reduced lead times
- High pressure: Up to 207 bar (3,000 psi)
- Easy maintenance: Replacement filters in stock
- Robust construction: Bolted flange housing
- Certification options CRN, U-stamp, PED
- MAWP up to 207 bar (3,000 psi)
- MAWT 82.2 °C (180°F)
- Filter elements: 1 - 20 micron
- Customer connections: Tubing, class 600 flange, class 1500 flange
- Orifice options: Up to 6.35 mm (0.250 in.)
