Flowserve A625 Airfin Seal Cooler
The Flowserve A625 seal cooler series is an excellent choice for cooling water-free solutions. These seal coolers offer a reliable and cost-effective choice for cooling mechanical seals. With easy installation and maintenance, they use ambient air to eliminate the need for cooling water in low- and medium-duty applications.
The series includes a range of configurations, such as natural and forced convection, single- and double-stack, user connections, drain, vent and temperature indicators.
... Read more Read less Less Lead Time
Save 12 weeks or more
Easy Quotation
Pre-engineered configurations
Standard Interface
Same footprint and connections
- Lower operating costs with finned-tube air-cooling technology that eliminates water treatment and disposal
- Improve reliability with water-free cooling design, which prevents accidental shutoff and winter freeze-up
- Minimize installation and maintenance costs with unit design that requires less piping and is not as susceptible to fouling
- Compliant with API 682 4th edition
- 316 stainless steel cooling coil with aluminum fins
- 304 stainless steel housing materials
- Maximum working pressure of 200 bar (2,900 psi) at 371°C (700°F)
- Designed for ASME B31.3 (no U-stamp required)
- CRN for Canada as standard • North American standard motor: Div. 1 C and D/Zone 1 IIA T3c
- ATEX motor: II 2 G Ex d IIB T4, T1 Gc -20°C ≤ Ta ≤ 60°C
- Single-stack cooler
- Double-stack cooler

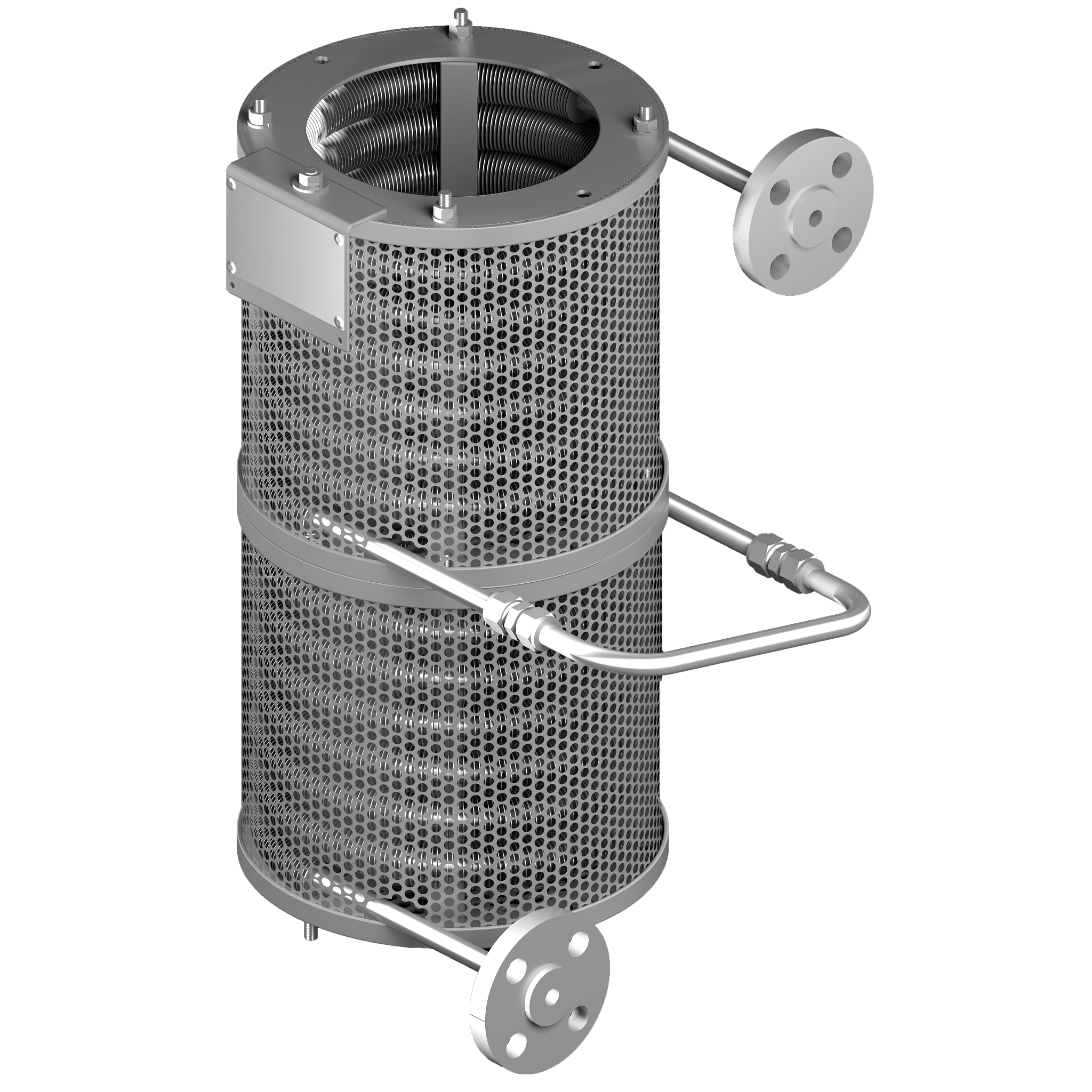

- Ambient convection cooling

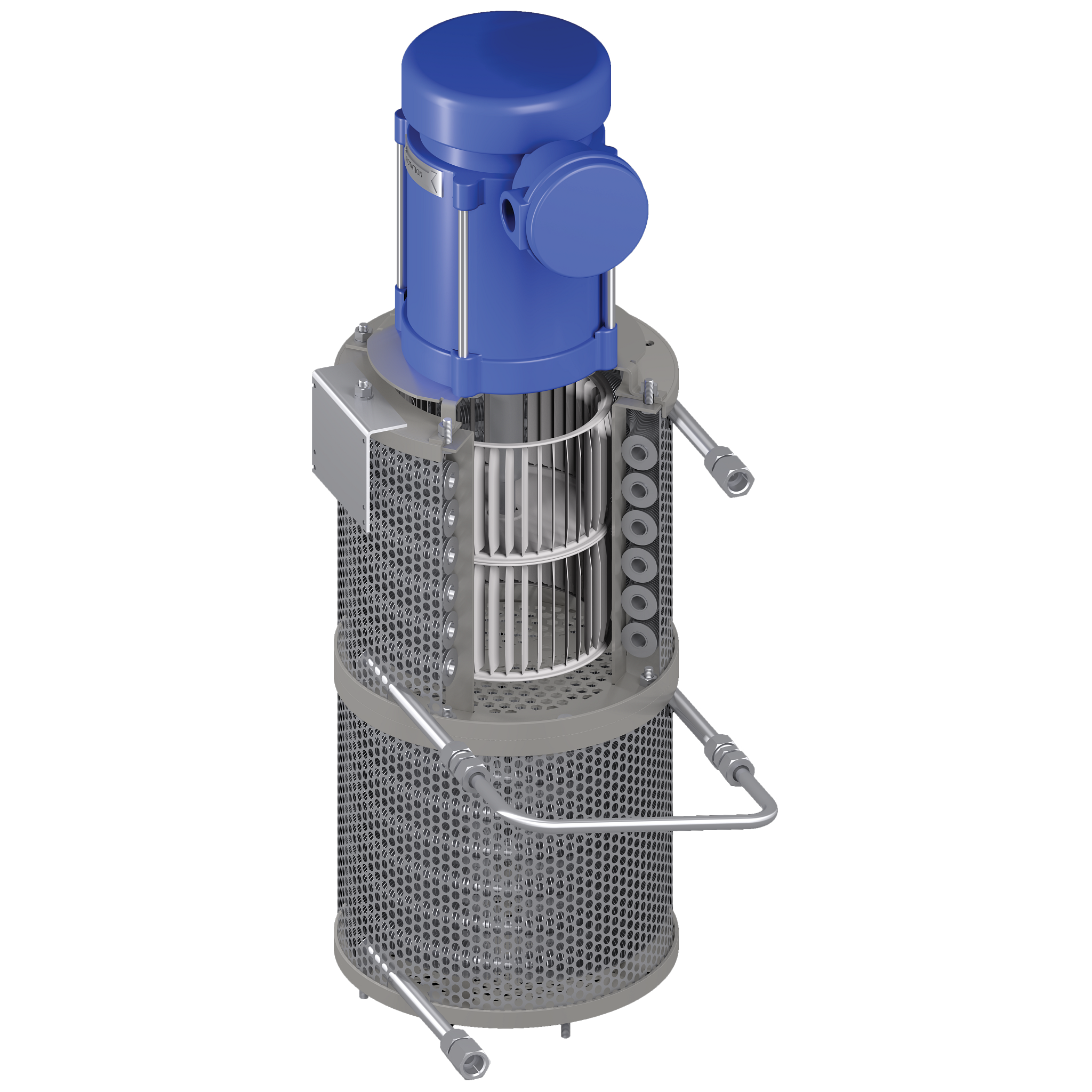

- Forced convention cooling
