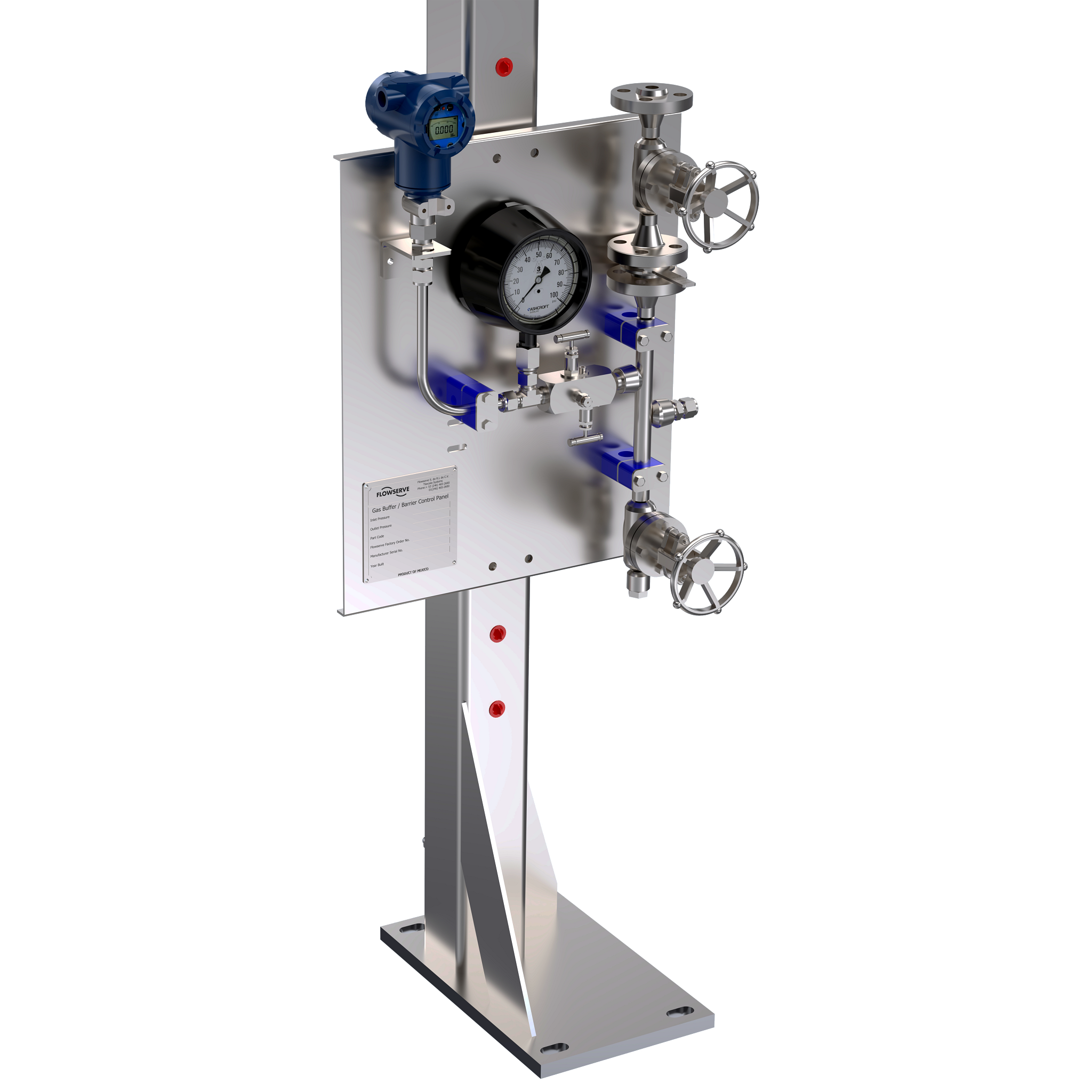

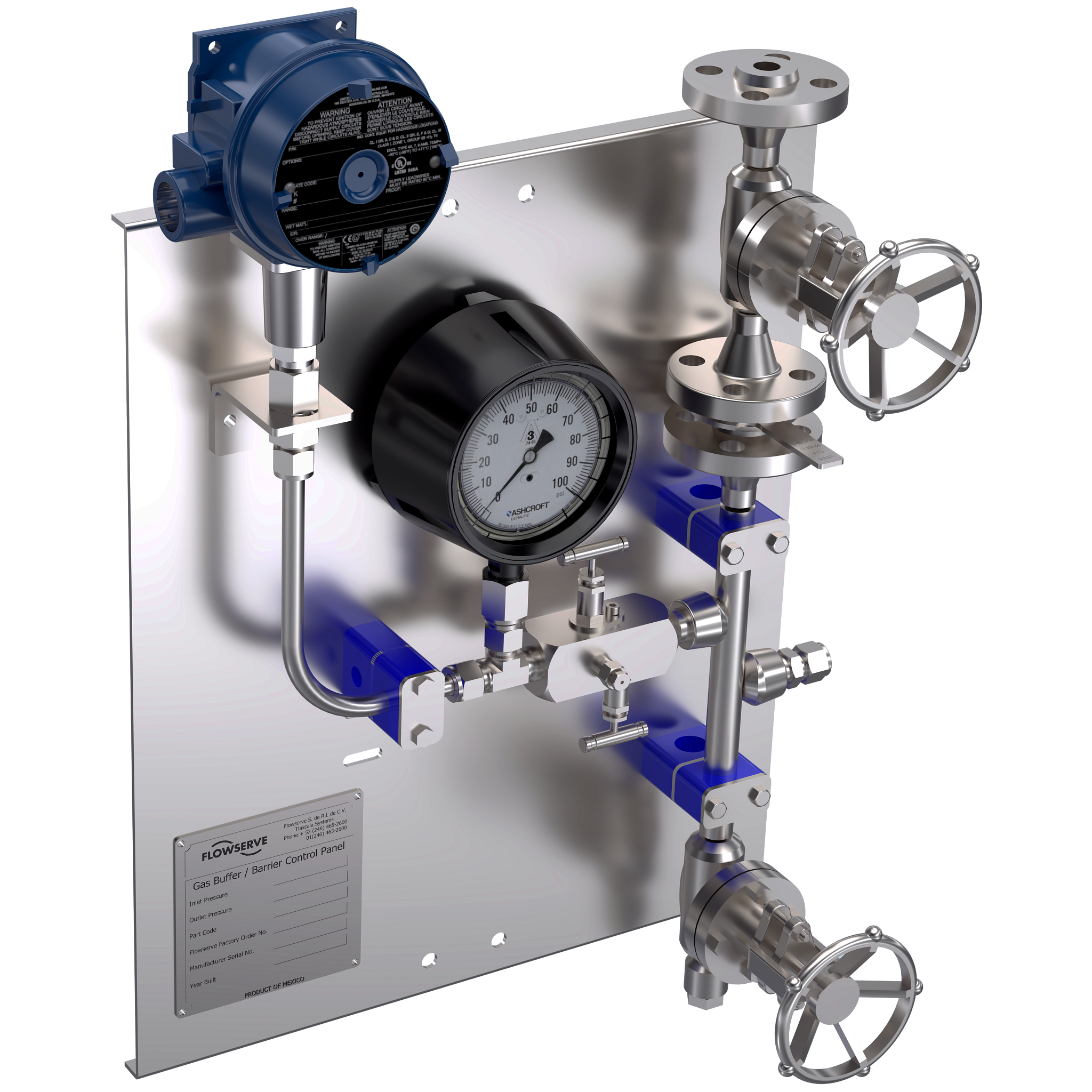

Flowserve A76, API plan 76 Pump Gas Panel
The Flowserve A76, API Plan 76, vent panel is fully compliant with API 682 4th edition and directs leakage from the containment seal cavity to the vapor collection system for fluids that do not condense at ambient temperature. It's available as an assemble to order (ATO) product with standardized components, providing the benefits of faster quotation and quicker delivery time.
... Read more Read less- Flexible installation options: available with butt weld or socket weld connections
- Easy system integration: vent connection via ½" NPT or ½" Class 600 flange
- Improved operational safety: multiple pressure monitoring and alarm configurations
- Built for durability: fully stainless steel construction
- Standards ready design: engineered to ASME B31.3 and compliant with PED and CRN
Standards
API Standard 682 (4th Edition)
ASME B31.3
Pressure Equipment Directive (PED) 2014/68/EU
CRN Canada wide
Operating Parameters
MAWP: 1.025 psi @ 400°F (71 bar @ 204°C)
MDMT: -49°F / -45°C
Size Range: 1/2 inch Schedule 80
Pressure Class Range: Class 600
Materials: 316 Stainless-Steel
