Flowserve® Ampliflow T-Boost Compressor Seals and Systems

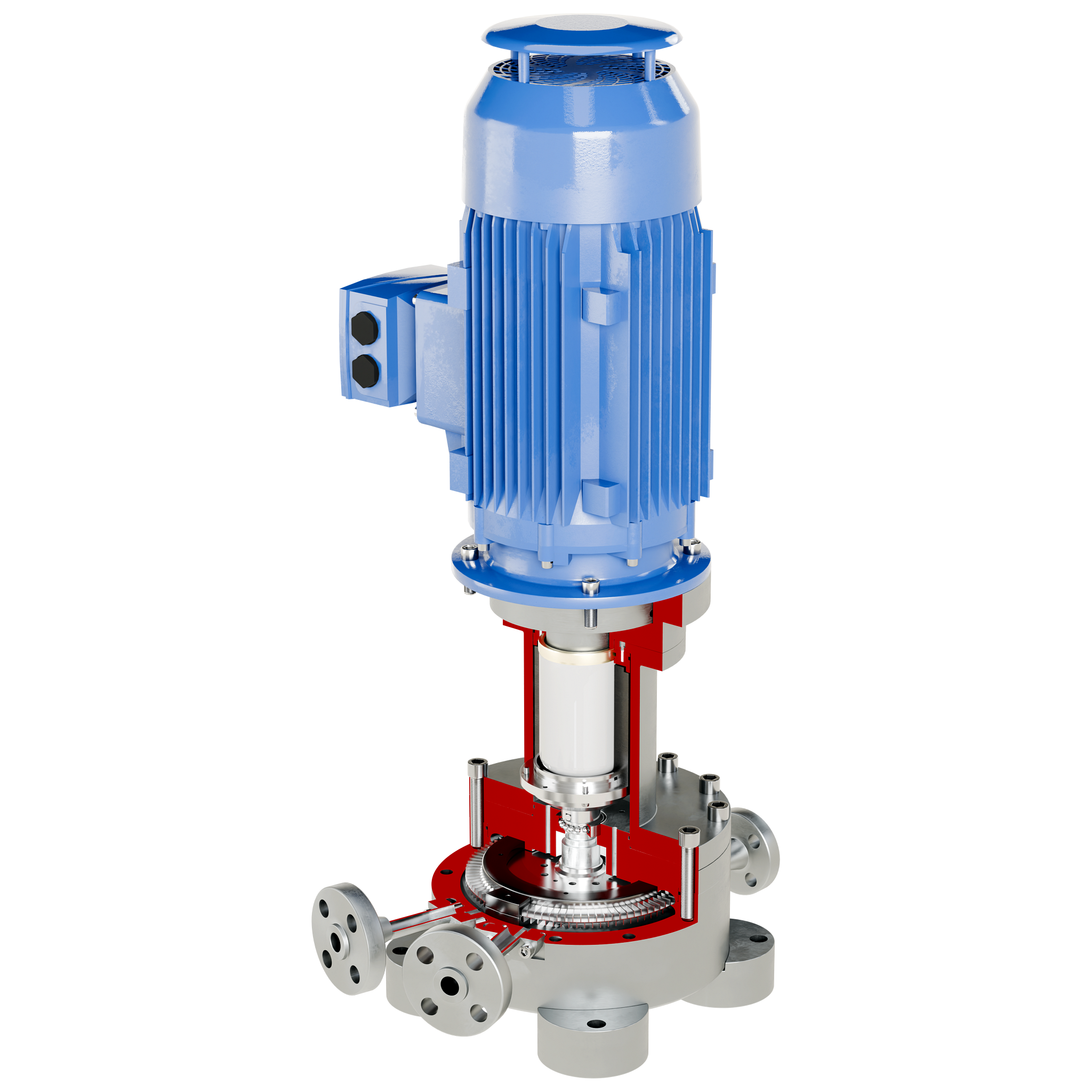

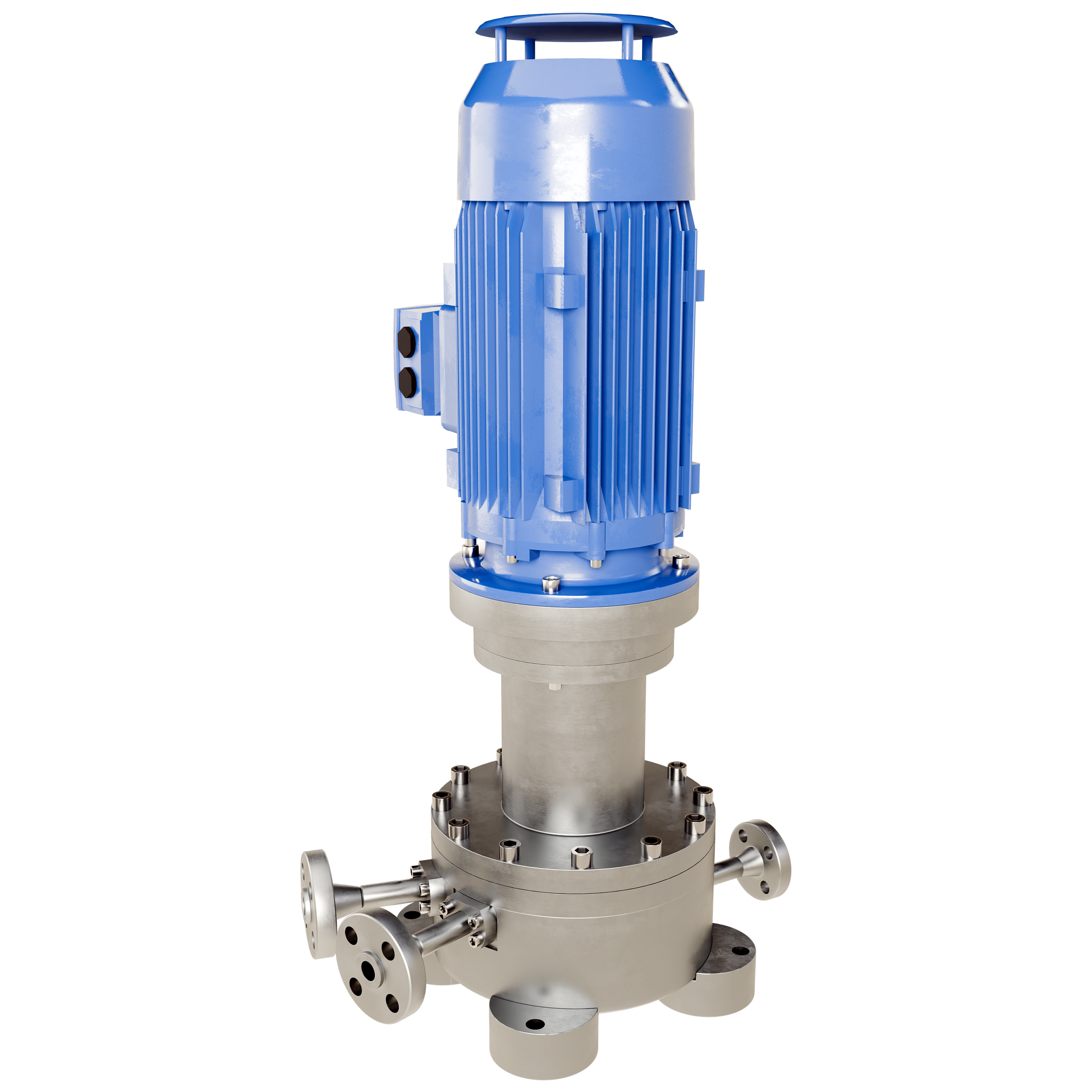

The Flowserve Ampliflow T-Boost is an electrically driven seal gas booster designed to protect dry gas seals and ensure compressor performance whenever differential pressure and flow are low. Powered by an innovative drive system, the T-Boost combines high energy efficiency with operating times of more than 24,000 hours.
... Read more Read less- Reliable seal gas supply during low differential pressure conditions to protect dry gas seals and maximize compressor uptime
- Advanced ceramic shell technology eliminates eddy current losses, improving energy efficiency, reducing thermal load and avoiding the need for additional cooling
- Hermetically sealed design ensures zero gas leakage for maximum process safety and environmental protection
- High-pressure capability supports design pressures of up to 350 barg
- Low-maintenance construction with minimal wear parts helps extend service intervals and achieve operating times of more than 24,000 hours
- Simple installation and integration into existing dry gas seal support systems
Standards
NEC Class 1, ATEX Zone 1
Operating Parameters
- Gas media: H2 to CO2
- Electric motor: 5.5 to 18 kW variable frequency driven
Pressure Class Range
Maximum allowable working pressure: up to 350 bar (5000 psi) @ -20°C to 180°C (-4°F to 356°F)
Materials
- Metal components: stainless steel
- Containment shell: ceramic
- Elastomers: FKM, others
Size Range
- Dimensions: 545 dia. x 1340 mm length (22 x 52 in)
- Connections: threaded, flange
- Certifications: NACE, others upon request
T-Boost D
T-Boost S 10
T-Boost S 20
T-Boost S 40
T-Boost S 60
T-Boost SF 50
T-Boost SF 80
